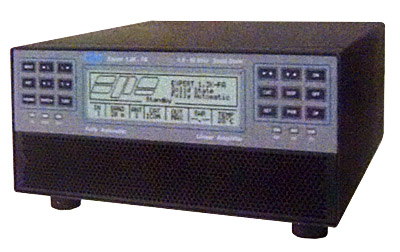

SPE Expert 1.3K-FA
Linear Amplifier

Product Specifications

• Powerful: up to 1.5 KW (1.3 KW) typ.
• Very Light: Less than 20 lbs. (9.1 kg.)
• Very Small: height 4.72" x width 11.02" depth 14.17", connectors included.
• Wide Frequency Coverage: 1.8 Mhz to 50 MHz, including WARC.
• Internal Switching Power Supply with Power Factor Correction.
• No jumper changes necessary to work from 100VAC to 255VAC.
• Manages 4 antennas automatically.
• Automatically switches between 2 transceivers.
• S02R operation.
• Able to manage external set of Band Pass Filters.
• ATU Built-In: bypassable per antenna and band.
• Up to 3 antennas can be selected for every band.
• Additional receiving antenna can be selected.
• Drives directly up to 4 dynamic antennas (StepplR, Ultrabeam) for an easiest layout.
• No relay contacts are switched when current is flowing due to special software.
• QSK.
• Fully remotable.
• Remote control and all software upgrades fully available on SPE website.
• USB and RS 232 ports.
• 3 Selectable Power Output: MAX, MID (800 W), LOW (500W).
• Very clean and low distortion signal.
• Both inputs always perfectly matched.
• Quiet Operation: 4 fans linearly controlled by power supply and power amplifier temperatures.
• Fully protected.
• Fully Solid State: uses only one new, very rugged device.
• Over 30,000 lines of software for performances that cannot be found together in any other amplifier.
• Two very fast CPUs.
• CAT and Band Data compatible with all rigs on the market allowing control of antennas, bands, ATU matchings.
• Available also without ATU, allowing significant savings.
• Complete with heavy duty carrying bag, allowing carry-on to airplanes.
• Certifications: CE, FCC.
